SWITCHES
EUROPEAN LINE VOLTAGE SELECTOR SWITCHES
291
* Please visit the product pages on our website for the most up-to-date product information
EUROPEAN LINE VOLTAGE SELECTOR SWITCHES
RED ACTUATOR
RED ACTUATOR
EPS1PC3
EPS2PC2
EPS3SL1
EPS4PC3

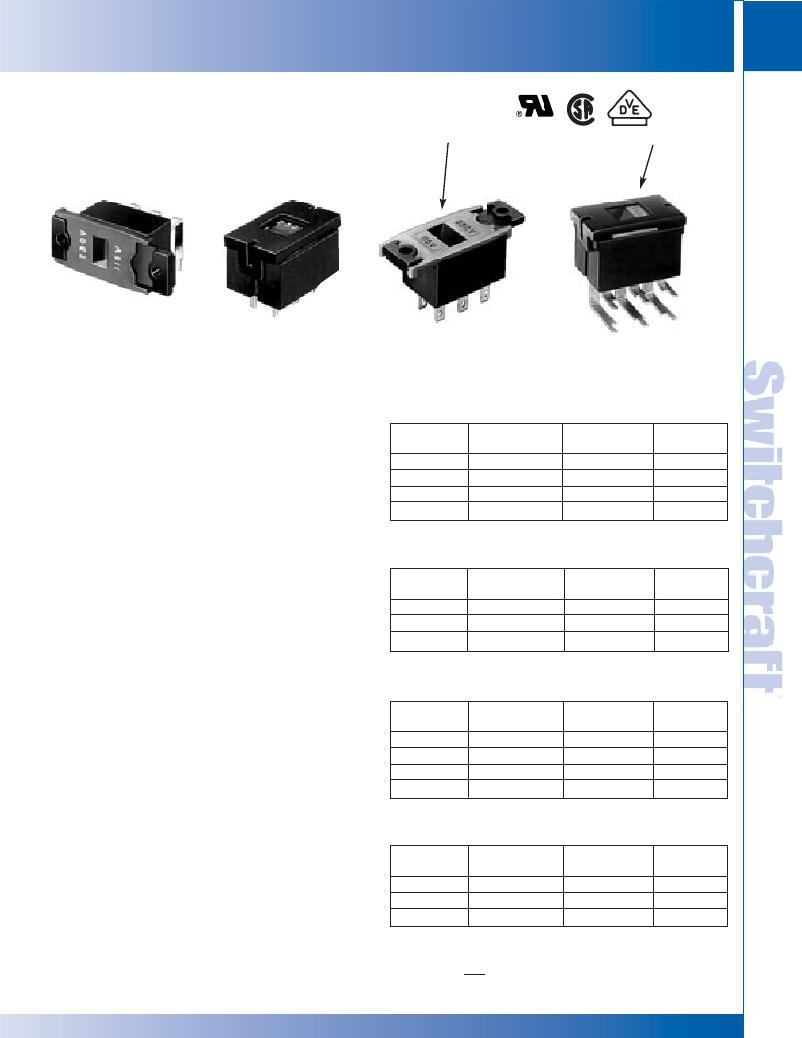

SERIES EPS1, EPS2, EPS3, EPS4 - 2 POSITION
European Power Selector Switches are designed for quick,
PART NUMBERS
Series EPS1
easy programming/selection of 115V-230V primary power.
These switches provide OEM designers with an excellent
selection of PC and solder lug terminals and ratings up to
10A, 125V AC rating for electrical/electronic equipment and
systems headed for the INTERNATIONAL marketplace.
HOUSING AND ACTUATOR
Part
Number
? EPS1PC1
? EPS1PC2
EPS1PC3
EPS1SL1
Terminals
Straight PC
Straight PC
Right-Angle PC
Solder Lugs
Dimension “B”
Inch (mm)
.681 (17.297)
.719 (18.263)
-
-
Schematic
2-III
2-III
2-III
2-III
Switches have positive, double detents for “sure” locking
into position. Screwdriver slot actuator virtually eliminates
the possibility of accidental operation and minimizes
tampering. Molded-in legends are: 115-230V. Terminals
? Special order only; contact Switchcraft.
Series EPS2
are staked into housing.
Part
Dimension “B”
SPECIFICATIONS
Contact Ratings: EPS1, EPS2 - 2A, 250V AC and 4A,
125V AC. EPS3, EPS4 - UL and CSA - 10.1A, 125V; 5A,
250V. VDE - 10A, 250V.
Number
EPS2PC1
EPS2PC2
EPS2PC3
Description
Straight PC
Straight PC
Right-Angle PC
Inch (mm)
.730 (18.542)
.768 (19.507)
-
Schematic
2-III
2-III
2-III
Listings: UL and CSA recognized, UL card E40668;
CSAcard 28260. 2A, 250V AC is VDE listed, VDE #13707
(for European applications). Designed to conform to
requirements of CEE (International Commission on Rules
Series EPS3
for the Approval of Electrical Equipment, Publication 24)
and the IEC (International Electrotechnical Commission).
Housing: Molded black glass-reinforced plastic.
Actuator and Cover: Molded thermoplastic.
Terminals: Copper alloy, silver-plated.
Slider Contacts: EPS1, EPS2 - Bi-Metal, silver on copper
Part
Number
EPS3PC1
EPS3PC2
EPS3PC3
EPS3SL1
Terminals
Straight PC
Straight PC
Right-Angle PC
Solder Lugs
Dimension “B”
Inch (mm)
.681 (17.297)
.719 (18.263)
-
-
Schematic
2-III
2-III
2-III
2-III
alloy. EPS3, EPS4 - Copper alloy with silver cadmium
oxide inlay.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 2kV rms @ sea level.
Series EPS4
Insulation Resistance: 1 k M ? minimum.
Part
Dimension “B”
SPECIAL ORDER FEATURES
Series EPS actuators having legends other than
115V and 230V are available on special order.
NOTE: Contact Switchcraft for details.
Number
EPS4PC1
EPS4PC2
EPS4PC3
Description
Straight PC
Straight PC
Right-Angle PC
Inch (mm)
.730 (18.542)
.768 (19.507)
-
Schematic
2-III
2-III
2-III
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
